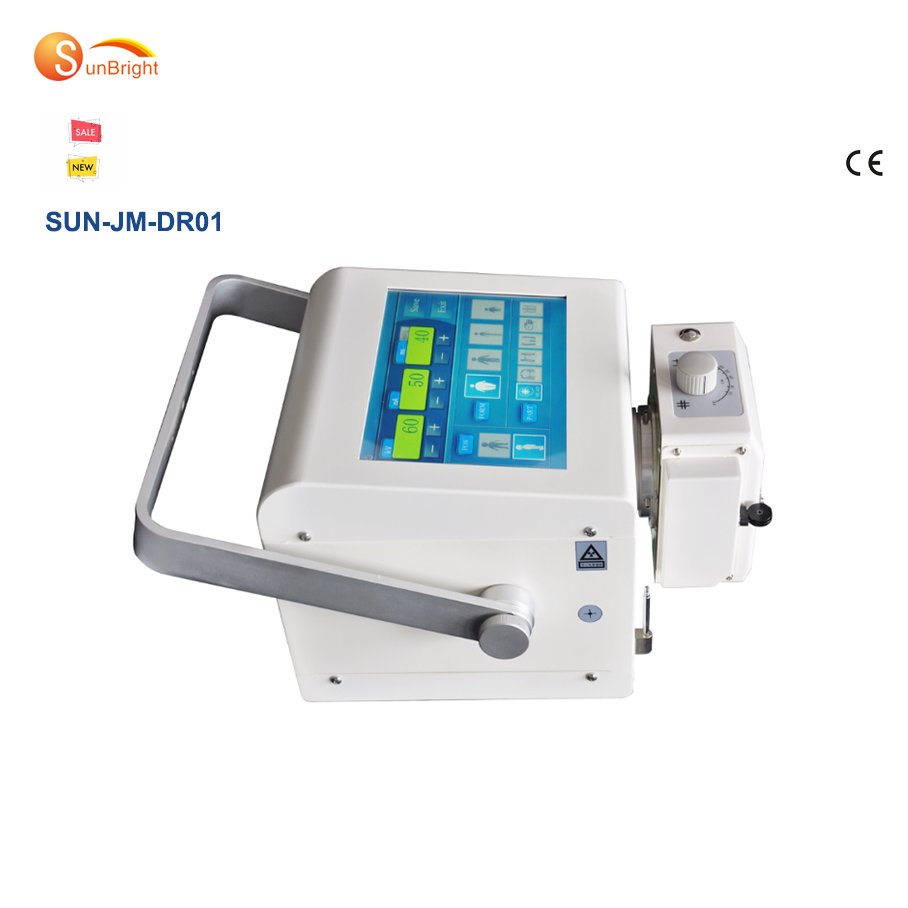

X-ray machine digital scanner Mobile X-ray Equipment SUN- JM-DR01
| Place of Origin | Shanghai, China |
| Brand Name | Sunbright |
| Model Number | SUN-JM-DR01 |
| Warranty | 1 Year |
| After-sale Service | Online technical support |
| Instrument classification | Class II |
| Type | X-ray machine |
| Power | 4kW |
| mA Range | 36~60mA |
| kV Range | 40~110kV |
| Light source | LED |
| Dimension | 10.4inch |
| Anode heat storage | 56KHU |
| Pixels | 3072*3072 |
| Weight | 19 kg |
| Size | 290*265*230 mm |
Supply Ability
Supply Ability: 20000 Unit/Units per Year
Packaging & Delivery
Packaging Details: air-worthy packing/sea-worthy packing
Port: Shanghai
Lead Time
| Quantity(Units) | 1 – 20 | >20 |
| Est. Time(days) | 5 | To be negotiated |
FAST DESCRIPTION

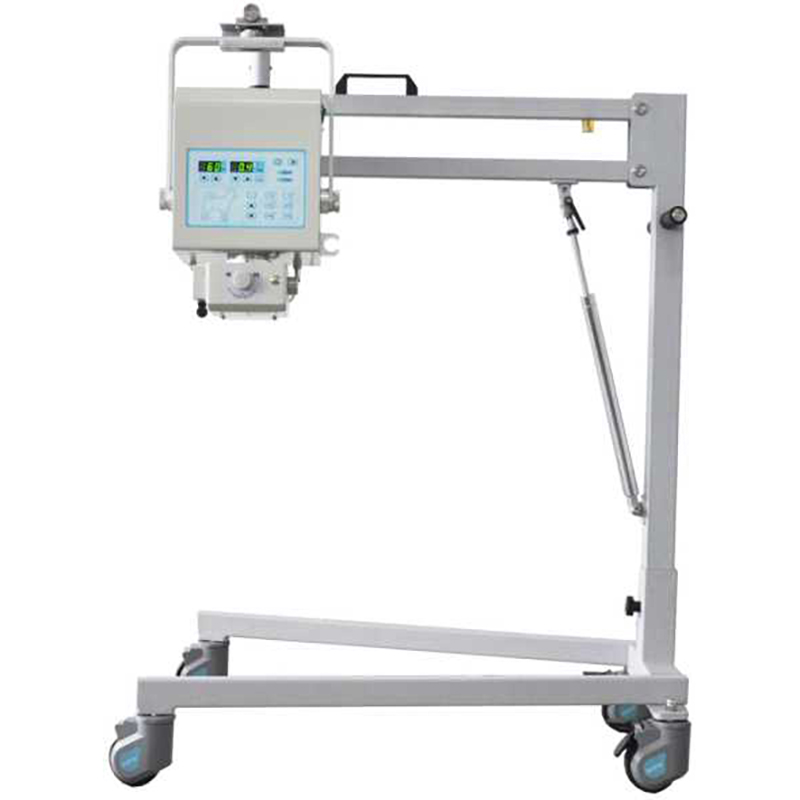

●Simple Stand design with wheels. The mobile stand is flexible and convenient to meet various position.
●The suitcase can be placed on the main X-ray machine, hand switch control, remote control, you can choose different exposure control.Also it’s easy to transport and carry cos special compact structure.
● It can be widely use for human limbs checking, diagnosing, especially used in hospital room, ambulance, disaster relief, emergency medical treatment, sports events, charity organizations, diagnosis etc.
● Deft and concise
● 6 periods of digital LED display
● Failure self-protection, self-diagnosis
● High precision control of tube voltage, tube current
● 48 kinds of presupposed anatomy memory pattern choice
● Accuracy control method of simulation and double digital loops
● X-ray tube complete surrender by lead for protect X-ray leaking
Specification
Main Component | Tech Spe. | |
Voltage | AC220V ± 22V | |
Generator | Power | 4kW |
kV Range | 40～110kV | |
mA Range | 36～60mA | |
mAs Range | 1-190mAs | |
Working Frequency | ≥40kHz | |
Exposure time | 0.04S～3.2S | |
X-ray tube(Toshiba tube) | Anode heat storage | 56KHU |
Focus | 0.5/1.6mm | |
Inherent filtration | 1mm Al/75Kv | |
Light source | LED | |
Key Console | Dimension | 10.4inch |
Acquisition Software | ||
Wire Flat Panel Detector 17*17inch | Scintillator | CsI |
Pixel Pitch | 139 | |
Limit resolution | 3.6 | |
Pixels | 3072*3072 | |
Laptop | CPU | Intel Core i5 |
Memory capacity | 4GB | |
Physical Spe. | ||
Main Unit | Weight | 19 kg |
Size | 290*265*230 mm | |

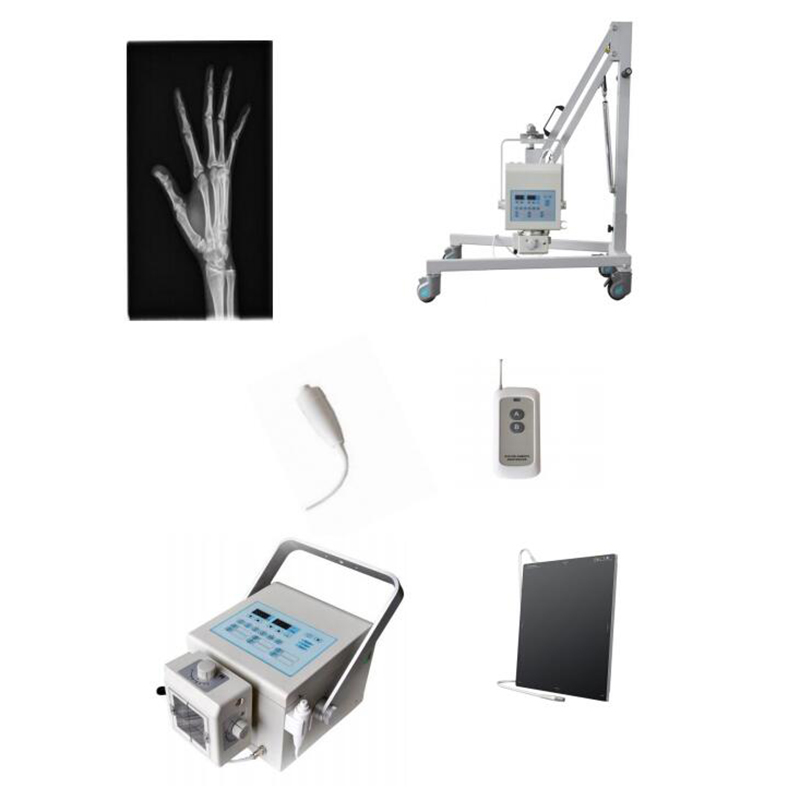

Details Pictures

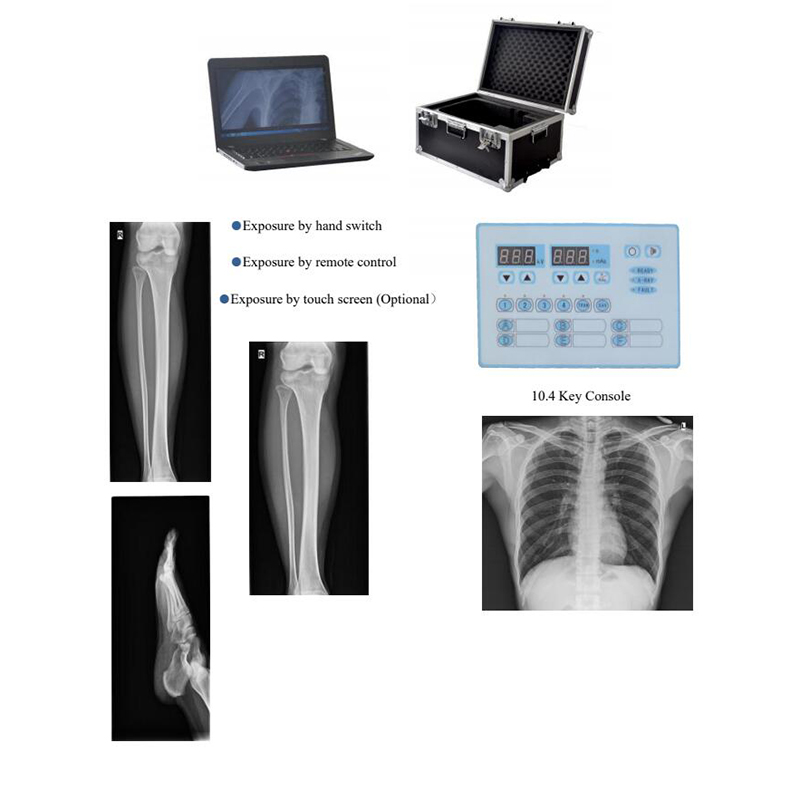

FAST DESCRIPTION
●Exposure by hand switch
●Exposure by remote control
●Exposure by touch screen (Optional）
