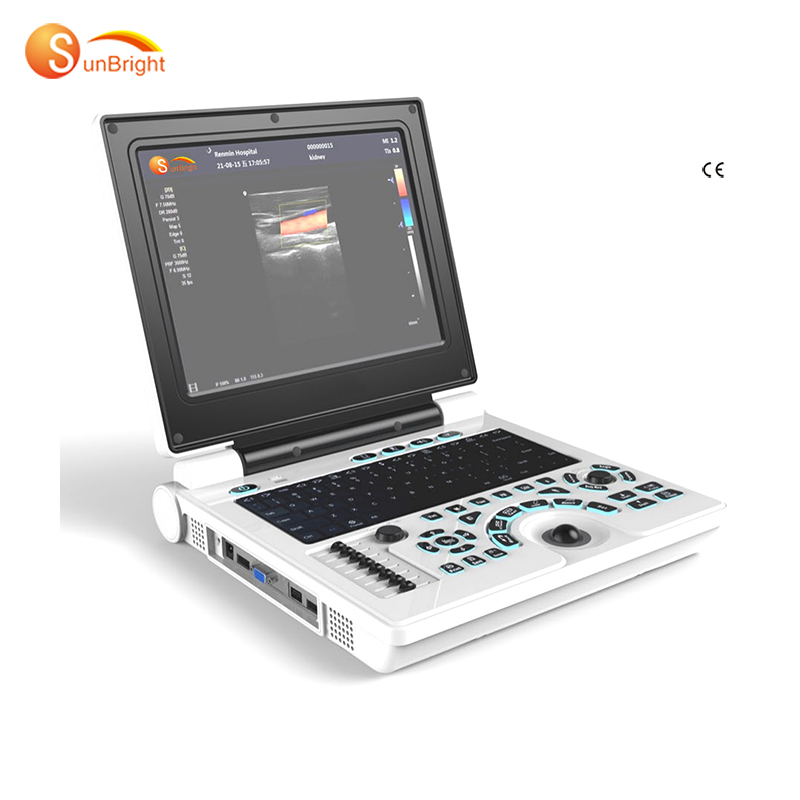

Clear image portable Doppler ultrasonography portable SUN-902A
| Place of Origin | Shanghai, China |
| Brand Name | Sunbright |
| Model Number | SUN-902A |
| Instrument classification | Class II |
| Properties | Obstetric Appliances |
| Type | Clear image portable ultrasound |
| Scanning depth | 400mm max |
| Electrical Power supply | 100-240V~50/60Hz 100VA |
| Zoom | 10*magnify |
| size | 308mm*310mm*66mm |
| Net Weight | 4 Kg |
| Display | 12 inch LED |
| Resolution | 1024*768 |

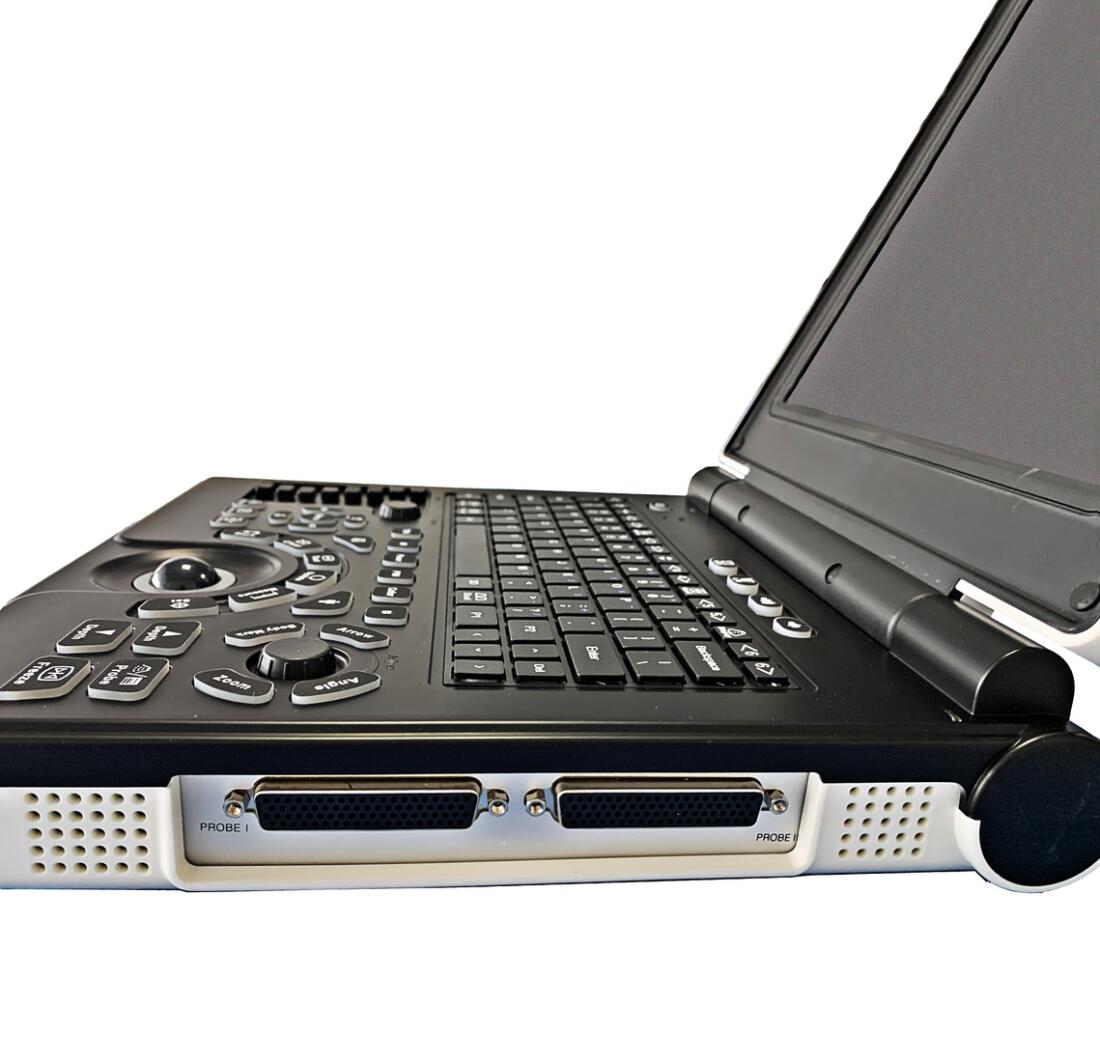

| Probe ports | 2-probe active ports |
| Hard disc | 120G SSD |
Supply Ability
Supply Ability:20000 Unit/Units per Year
Packaging & Delivery
Packaging Details:Sea-worthy packing/Air-worthy packing
Port:Shanghai
Clear image portable Doppler ultrasonography portable SUN-902A
B/ CFM/ PW triple synchronization
5 levels Image optimization
Digital beam- forming
Un View- speckle reduction
Tissue harmonic imaging
PW automatic envelope measurement
IMT ( Carotid intima- media thickness) automatic envelope measurement
Biopsy guide
Build- in editable report page
size | 308mm*310mm*66mm |
Net Weight | 4 Kg |
Display | 12inch LED |
Resolution | 1024*768 |
Probe ports | 2-probe active ports |
Hard disc | 120G SSD |
Imaging Modes
B、B&M、2B、4B, THI, PW, PDI , Color
Imaging parameters
Imaging processing： Persistence, Gamma, edge enhancement, compression curve, gray, 16 kinds of pseudo- color processing, focuses, canvas, Fov, contrast, brightness, Invert b/v, Mirror, Reverse
Blood flow imaging processing: power, samples, noise level, balance, flash reject, wall filter, C. Decision、 Tint

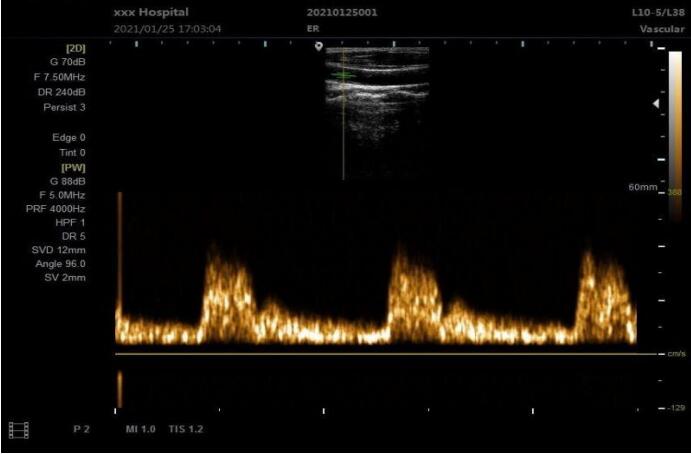

PW parameters: PW pseudo- color processing, spectrum reversal, envelope threshold, automatic envelope, volume
Gary scale: 256
Dynamic range： 80-280dB
Gain control： total gain， 8 –slice TGC
Scanning depth： 400mm max
Acoustic power： 3 levels adjustable， real-time display MI/TI
Zoom： 10*magnify
Cine-loop： 200-2000 frames max，auto/manually play back
Measurement
General measurement： Depth, Distance, Trace Length, Ratio (D), Area: Ellipse, Trace
Volume: 3-Distance, Ellipse, EDist
M mode: Distance, time, slope, Heart Rate Clinical measurement package: Abdomen, OB, Gynecology, Cardiac, Urology, Small Parts
Body mark
More than 64 body marks for versatile application With body position markers

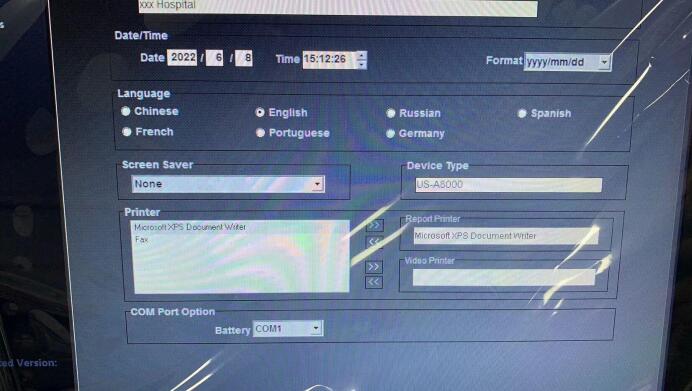

Language supported
Chinese, English, Spanish, Russian, French, Portuguese, Germany
Standard configuration features

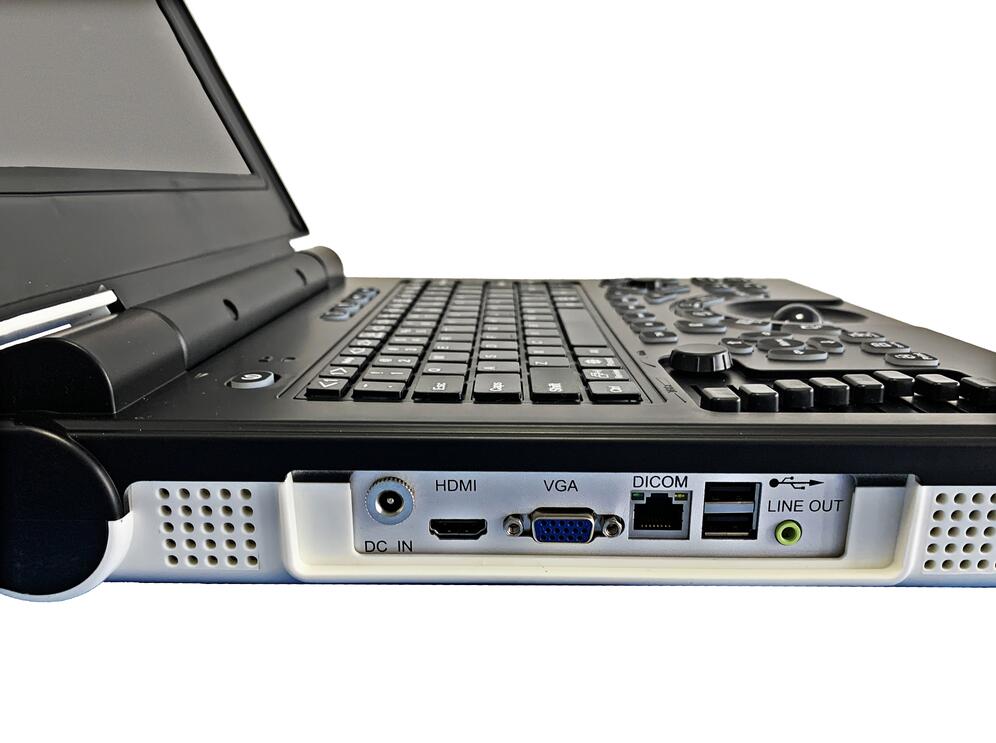

Peripheral ports: VGA, 2 USB ports, HDMI port, DICOM port, LINE OUT port
Electrical Power supply: 100-240V~50/60Hz 100VA
Li-lion battery 3.2Ah
Video & PC printer (Optional)
