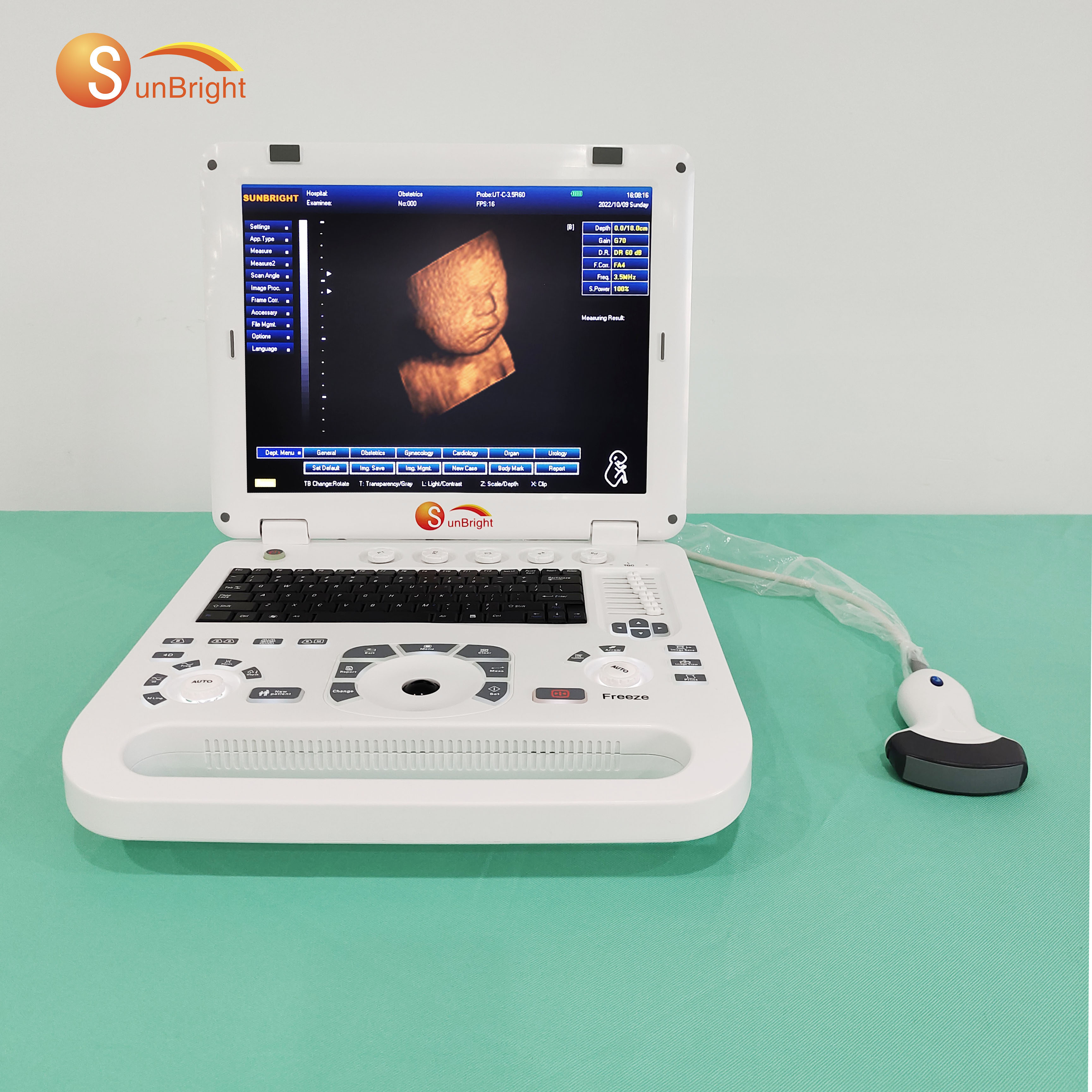

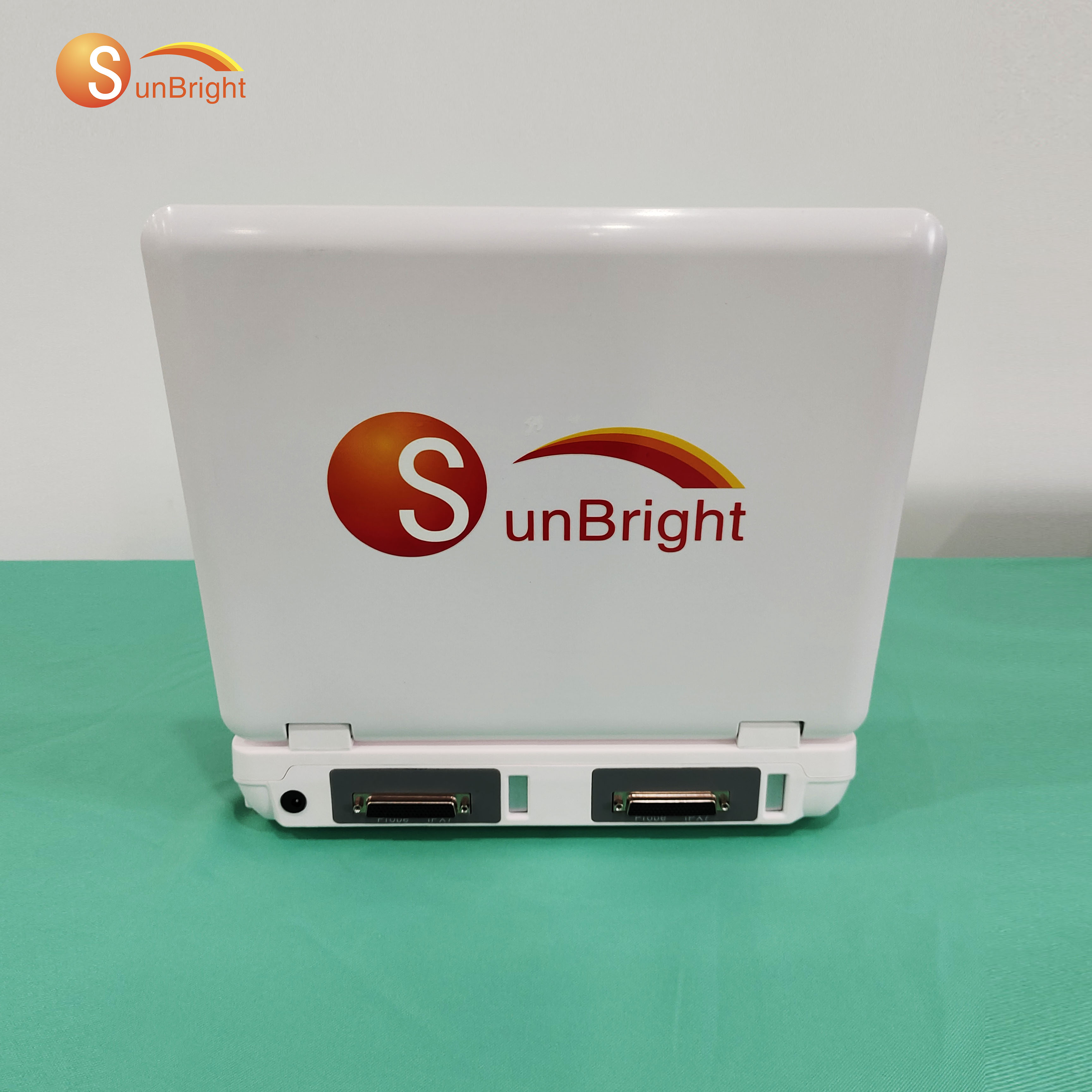

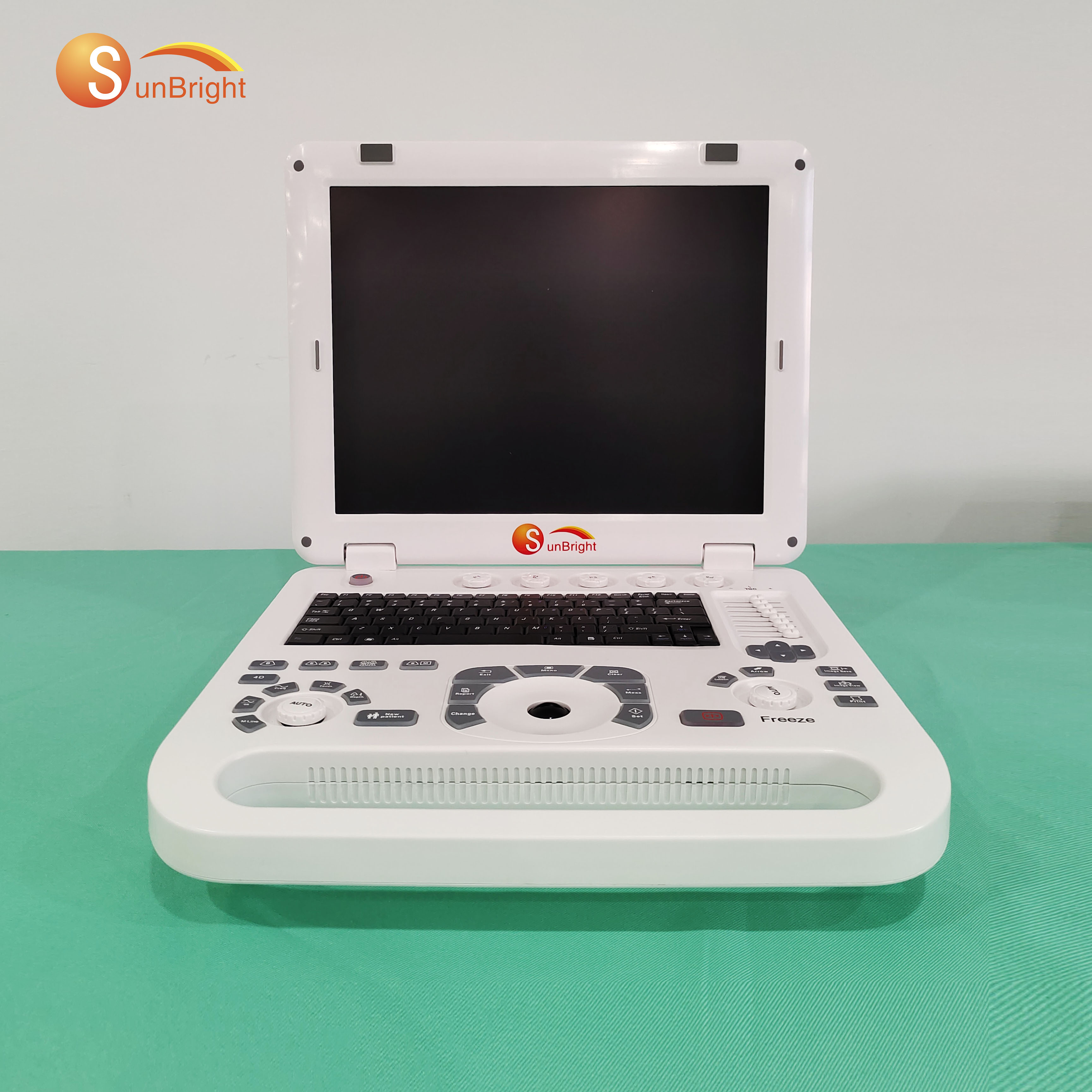

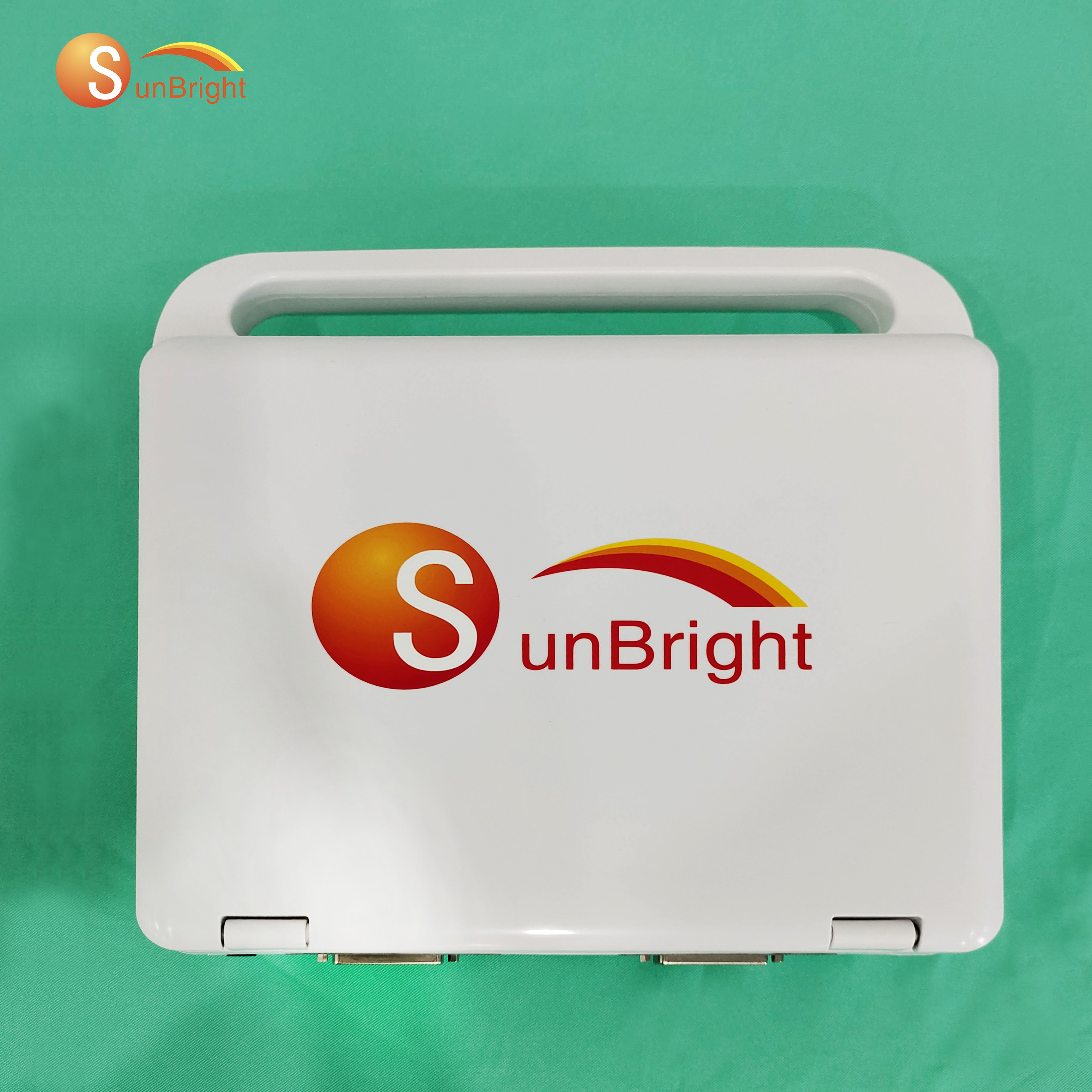

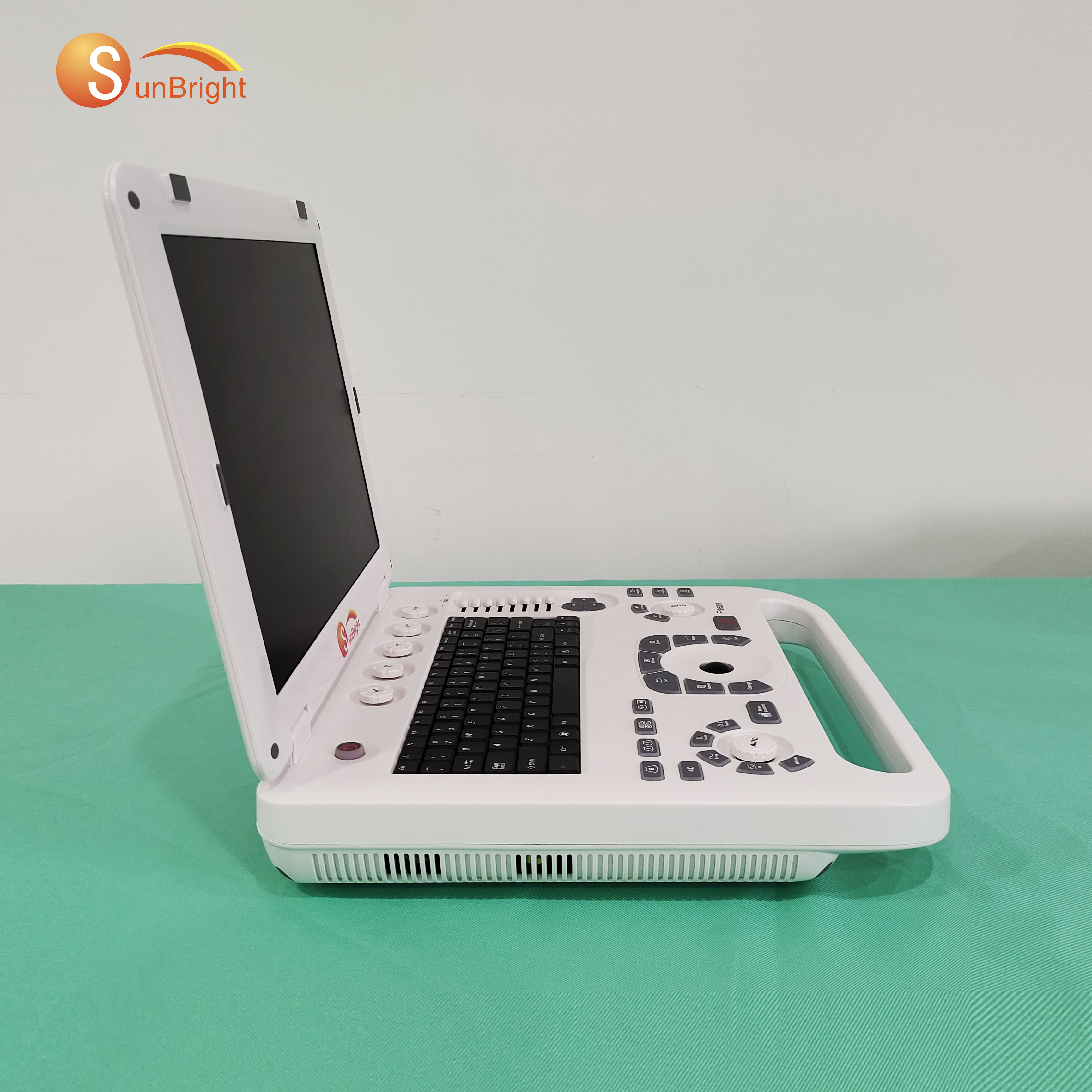

Laptop 2 probe connector ports color ultrasound system portable ultrasound diagnostic SUN-800D
| Place of Origin | Shanghai, China |
| Brand Name | Sunbright |
| Model Number | SUN-800D |
| Warranty | 2 years |
| After-sale Service | Return and Replacement |
| Instrument classification | Class II |
| Type | Hot Selling ultrasound, Portable Ultrasonic Diagnostic Devices |
| Battery | continuesly work more than 3 hours |
| USB ports | 2 usb ports, connectivity of usb flash and laser printer |
| Specialty | general, OB/GYN, vascular, cardiology, urinary, small organs, etc. |
| Imaging mode | 2D, free-hand 3D |
| Image/video forma | AVI, JPG, BMP, PNG, TIF, DICOM |
| TGC | 8-segment TGC, precise adjustment of near/far gain |
| Cine loop | 512 Frame (Auto/Manual) |
| Printer | Any printers is OK |
| Multi-language function | English, Chinese, Spanish, Portuguese, French |
Packaging & Delivery
Selling Units: Single item
Single package size: 26X49X49 cm
Single gross weight: 12.500 kg
Package Type: Sea-worthy packing/Air-worthy packing for Hot Selling ultrasound
Lead Time
| Quantity(Units) | 1 – 5 | >5 |
| Est. Time(days) | 5 | To be negotiated |
Product Description
Laptop 2 probe connector ports color ultrasound system portable ultrasound diagnostic SUN-800D
Display | Full digital 15 inch LED display, 3D ultrasound |
Platform | Pc-based |
Beam forming | DBF, RDA, DRA, DRF |
DFS | Dynamic frequency scanning from 2.0 to 12.0MHz, 4 multi-frequency scanning |
THI | yes |
Display mode | B, 2B, 4B, B/M, M |
Image process technologies | controllable frame correlation, Gamma correction, edge enhancement, image smoothing, image denoisiong, automatical gain adjustment, up/down, left/right and black/white conversation. |
Image magnification | stepless magnification, dynamic real-time PIP local zoom functions |
Cine loop | 512 frame auto/manual cine loop; multi screens cine loop (4B, 9B); auto/manual cine loop under B/M and M mode. |
Image management system | the functions of pigeonholing, browsing, comparing, saving, printing and transferring images; as many as hundreds of thousands of images and thousands of cine loop could be saved; saved images could be operated by full-screen browse under slide mode. |
Measurement and calculation | measure perimeter and area by distance or ellipse method; measure perimeter and area by track method; measure body surface area and volume by ellipse method. 4 measure sticks; rate measure; linear stenosis ratio, area stenosis ratio, angle measure. All calculations are automatic. |
Assist tools | puncture guide, histogram, sectional drawing. |
Menu manage interface | real time online support and navigation clew system, image fore-set and one-key optimization functions. |
Body marks | Multi-tens |
Patient cases database system | All the data could be saved, searched and managed. Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve. |
Presetting Formulas | Presetting system for diagnosis and measurement formulas. Different formulas could be set according to different races. |
Auto-measure software of OB., Gyn., small organs, cardiac, urology and others | OB.: BPD, CRL, GS, HA, AC, HC, FL, APAD, TAD, FTA, HUMERUS, OFD, THD, TIBIA, ULNA, AFI, LIMP, BBT, FBP Gyn.: uterus diameter, intima thickness, ovary colume, regnant ovarian follicle, length of cervix long-diameter, uterine. Small organs: thyroid gland, hip joint. Cardiac: AOD, LAD, IVSTd, LVIDd, AA, LAD/AOD, LVPWd, LVIDs, EF, EF SLP, CA/CE, MVCF, CO, CI, LVMWI, AVSV, FS, ACV, ET, SV, SI, LVMW, QMV Urology: remained urine sample, prostate,PSAD. Patient cases database systems. All the data could be saved, searched and managed. Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve. |
3D software | yes |
4D software | yes, optional |

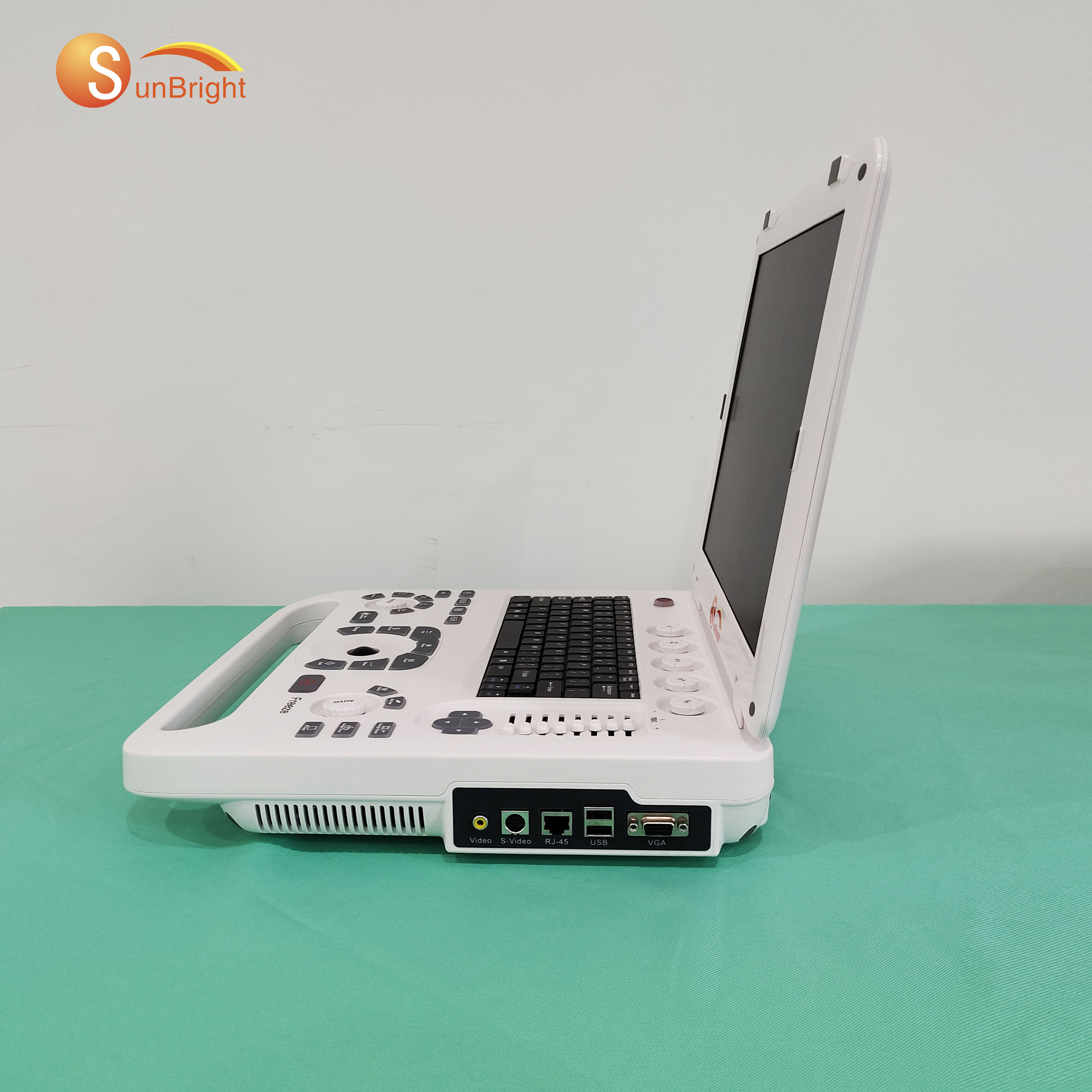

Relative extended ports | VGA, S-Video, TV video port USB2.0 port, 2G saving card RJ-45 network port Multiple kinds of saving modes are all supported, containing soft disk, hard disk, flash disk, CF card, SD card and others. Compatible of jet printer, laser printer, video printer and video recorde |
Standard Congfiguration:
800D 3D main unit+one convex probe+lithium battery+Carrying bag
15″LED with high resolution
3D softwarefree during promotion
Two USB ports
One VGAout port
One video port
One power inlet
One convex probe(3.2M R50)
Plenty of measurement & calculation software packages
18 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes
