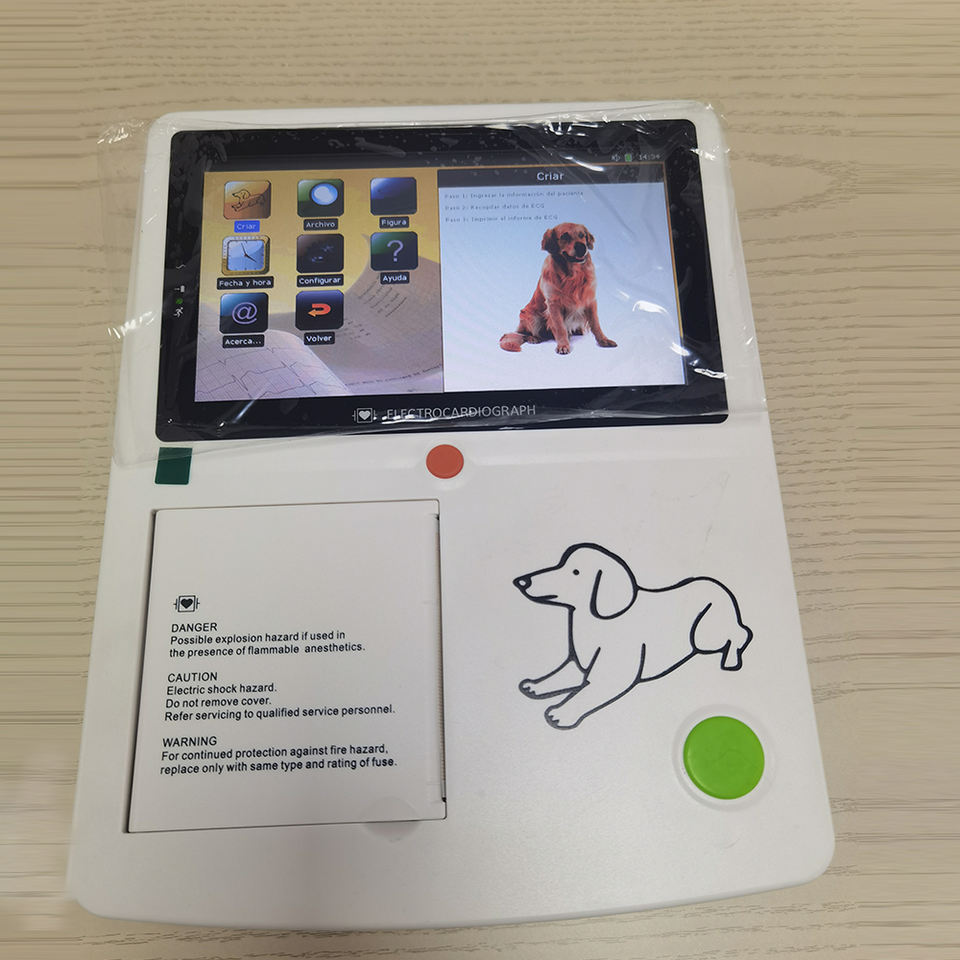

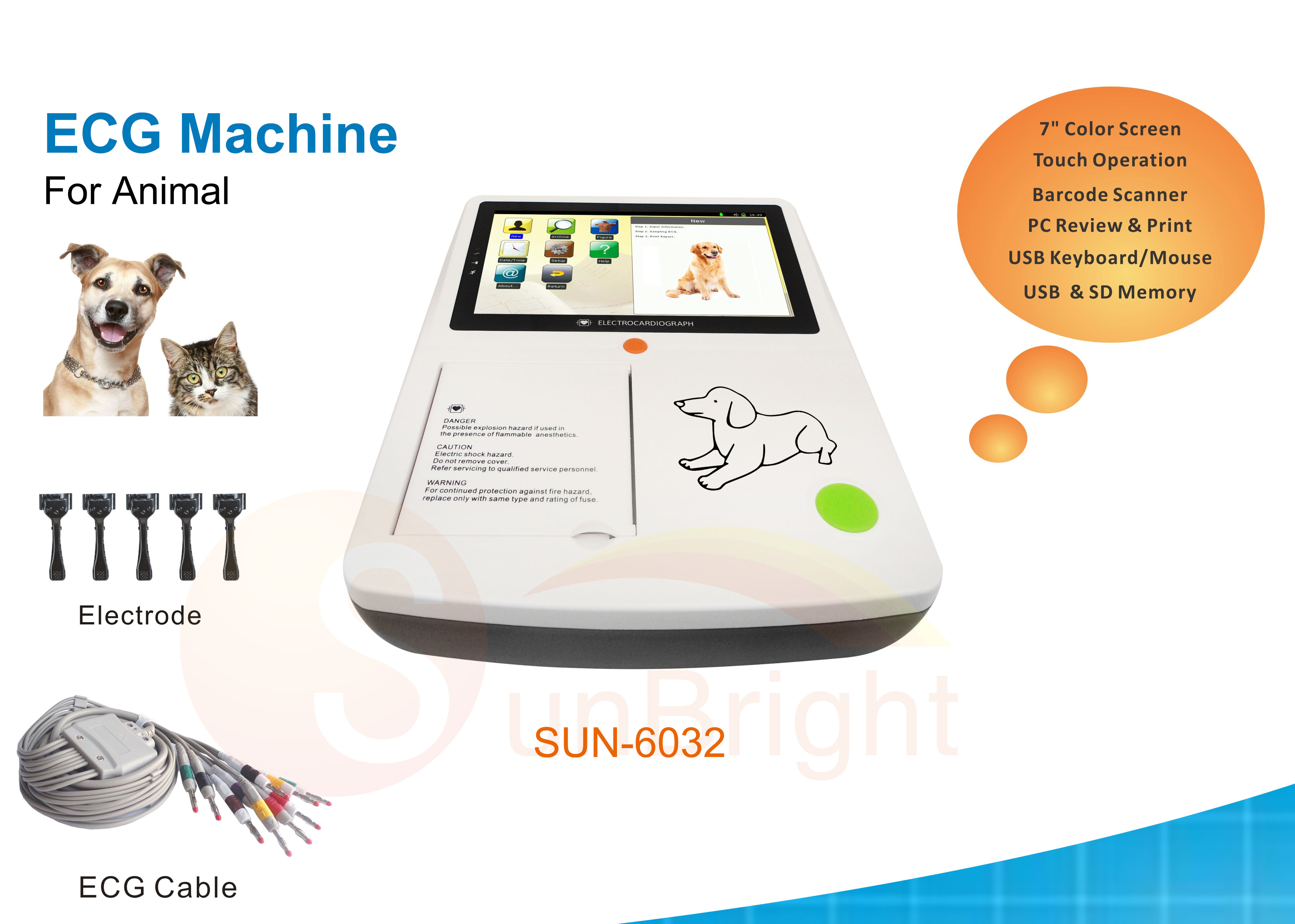

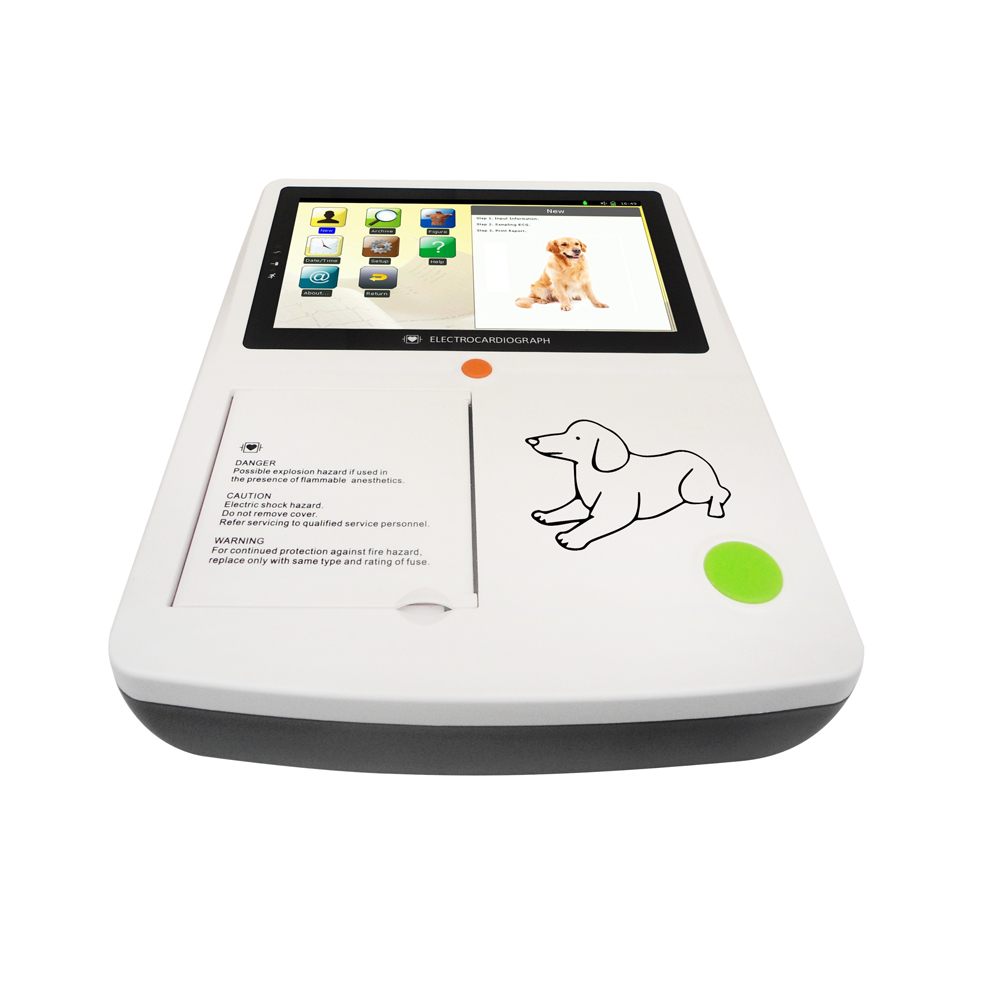

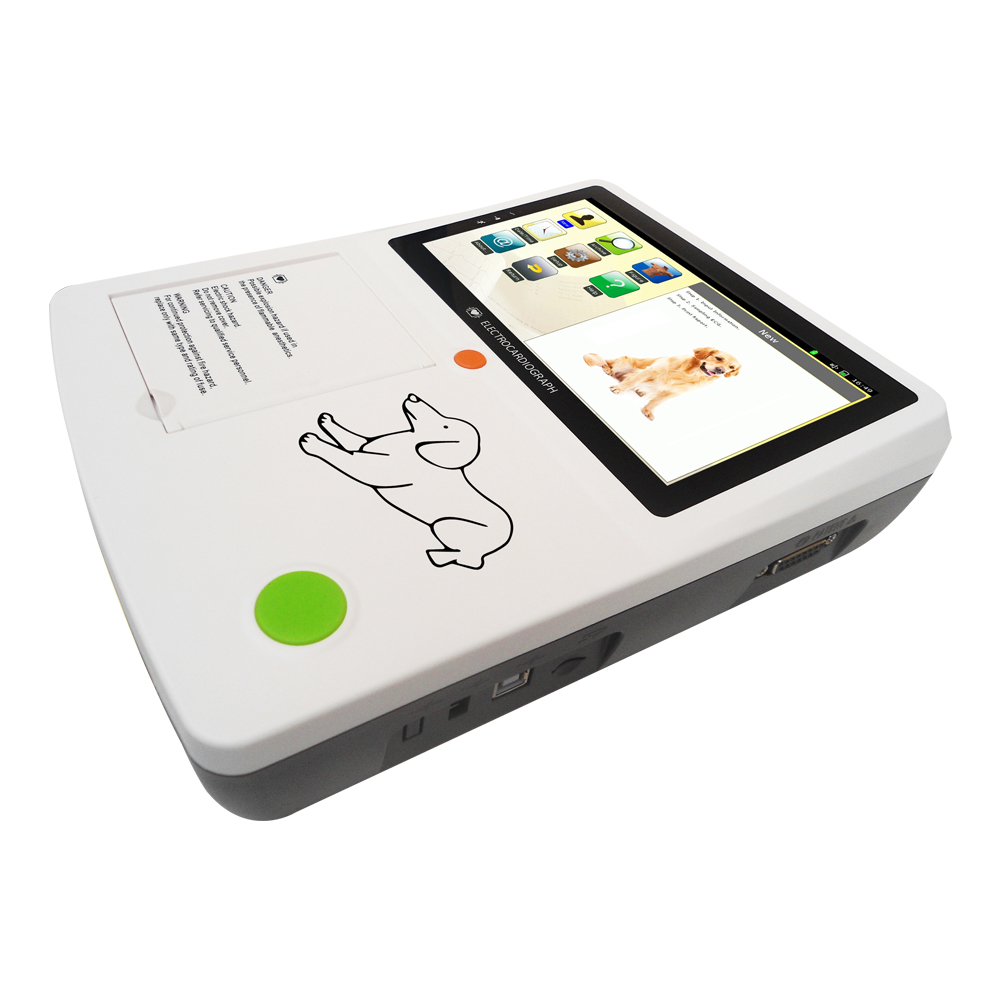

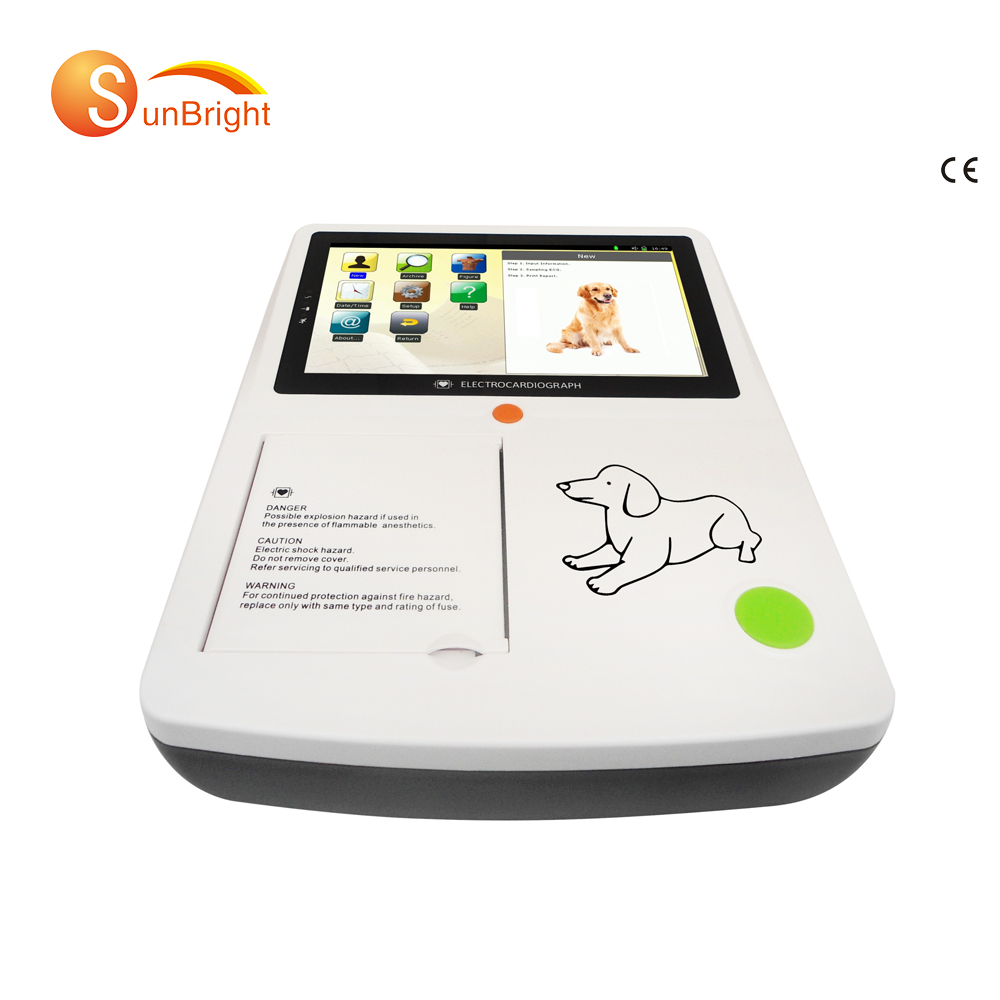

12 leads vital signs Veterinary 3 channel ECG Machine ekg SUN-6032
| Place of Origin | Shanghai, China |
| Brand Name | Sunbright |
| Model Number | SUN-6032 |
| Instrument classification | Class II |
| Input circuit | Floating |
| Type | 12 leads vital signs Veterinary 3 channel ECG |
| Input circuit | Floating, Protection against defibrillator effect |
| Voltage tolerance | ± 500mV |
| Resolution | 12bit/1000Hz |
| Time constant | > 3.2s |
| Operation mode | Manual/Auto |
| Filter | AC. EMG Filter |
| Drift filter | Anti-Drift System |
| Package | 256mm*204mm*66mm |
| Gross Weight | 3Kg |
Supply Ability
Supply Ability:20000 Unit/Units per Year
Packaging & Delivery
Packaging Details:Sea-worthy packing/Air-worthy packing
Port:Shanghai

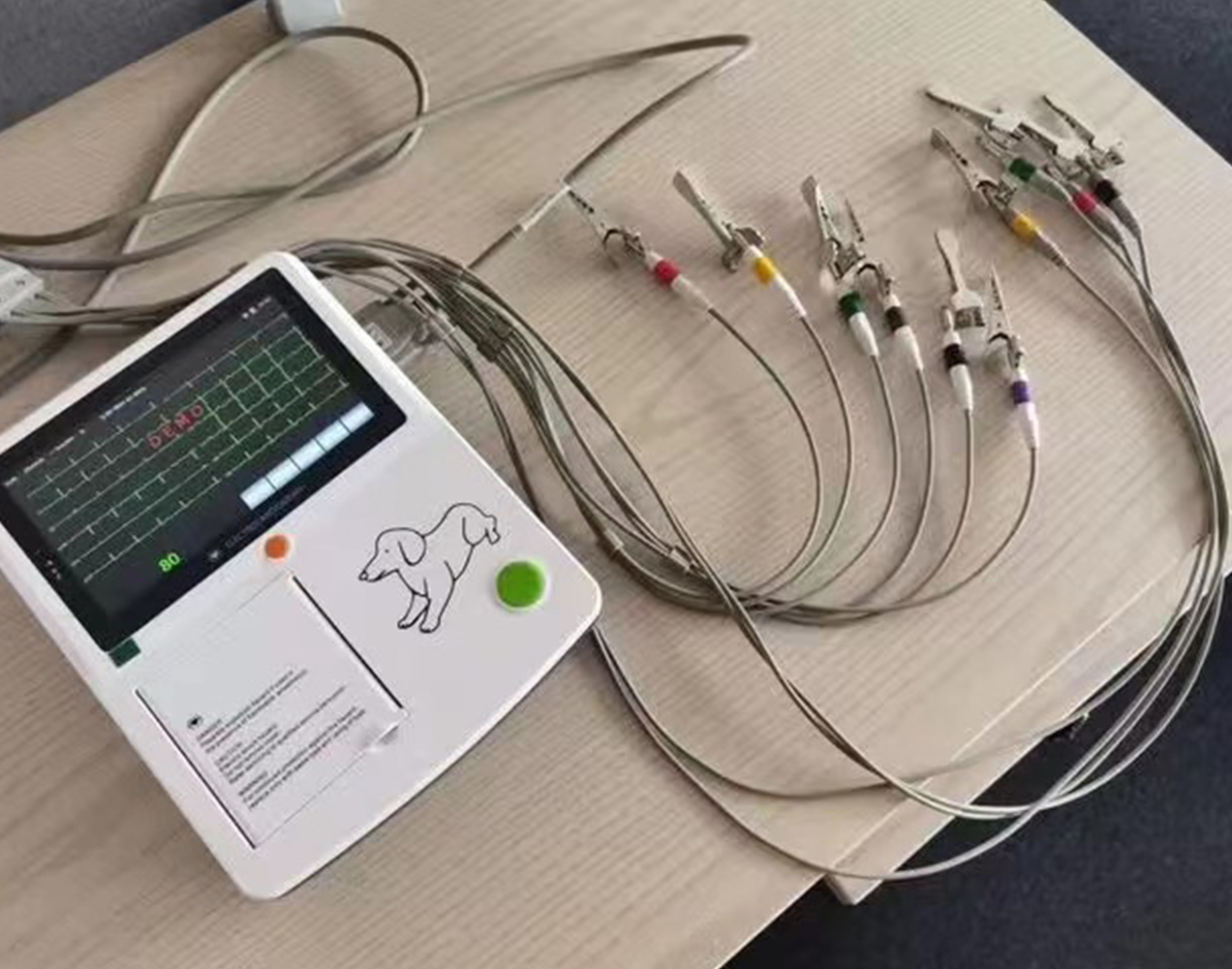

12 leads vital signs Veterinary 3 channel ECG Machine ekg
Functional Characteristics

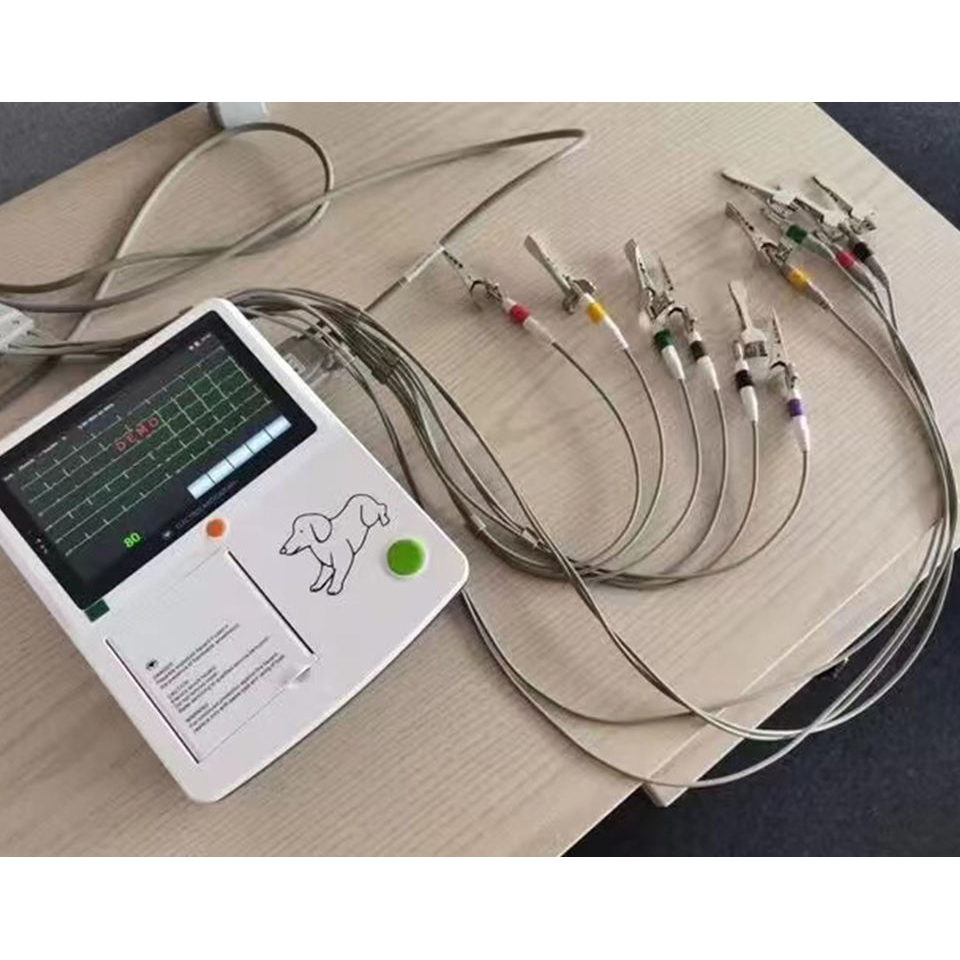

7/12 lead ECG synchronous sampling system.
Thermalprinter with 80mm print paper, synchronization print.

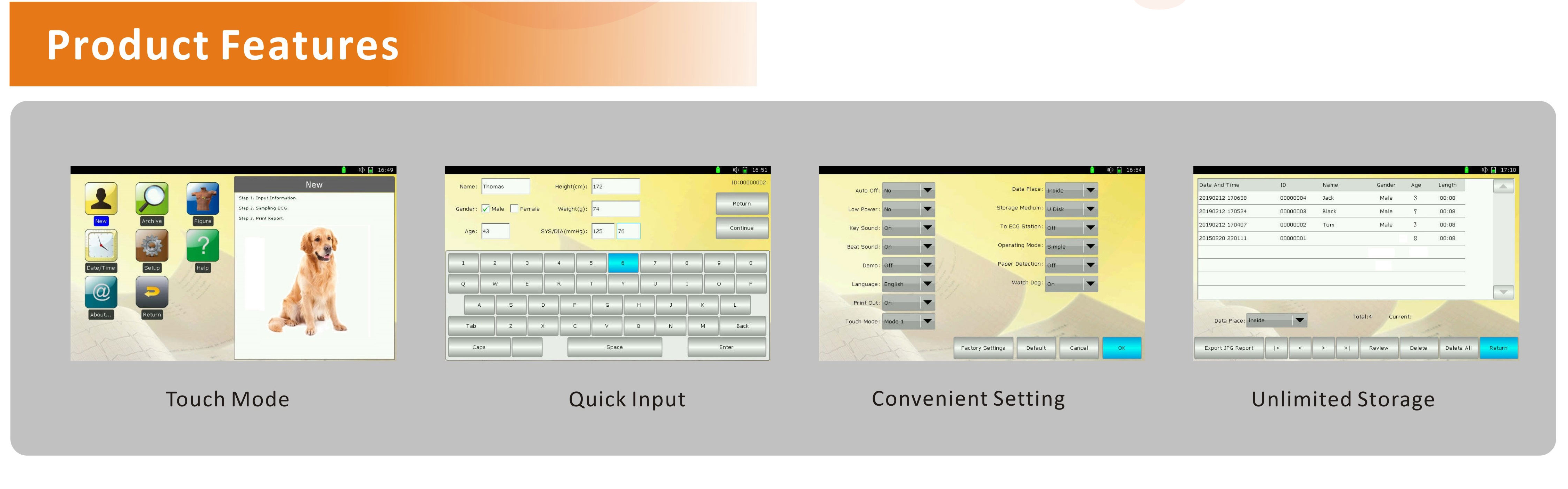

7′color touch-screen,touch operation.
Automatic measurement, calculation, analysis, waveform freezing.
Support USB flash disk & SD memory.
Data transmitting to PC via USB.
Patient’sinformation can beinput.
Historicaldata can berevie wedand printed .Built-in rechargeable li-ion battery, AC/DC power conversion
Sleep mode to save energy and extend TFT screen life.
Support USB Keyboard/Mouse.
Lead off & lack off paper detection function.
7level printing thick can be chosen.
Adapt to 110-230V,50/60Hz AC power supply.
Connectivity/Media/Peripherals
CMRR | ≥ 100dB, with AC Filter | Calibrating voltage | 1mV± 3% |
Input circuit | Floating, Protection against defibrillator effect | Voltage tolerance | ± 500mV |
Input circuit current | ≤ 0.1µ A | Time constant | > 3.2s |
Resolution | 12bit/1000Hz | Frequent response | 0.05Hz~150Hz |
Operation mode | Manual/Auto | Noise level | ≤ 15µ Vp-p |
Filter | AC. EMG Filter | Threshold | ≤ 20µ V |
Drift filter | Anti-Drift System | Paper speed | 12.5mm/s.25.50mm/s （±3%） |
Input Impedance | > 50MΩ | Sensitivity | 5 ，10 ，20mm/mV |
Patient current leakage | < 10µ A | Recorder | High resolution thermal printer |
Rated voltage | 100V-230V 50Hz/60Hz | Battery | Li-ion Battery(11.1V,2200mAl） |
Recording paper | Thermal recording paper | Package | 256mm*204mm*66mm |
