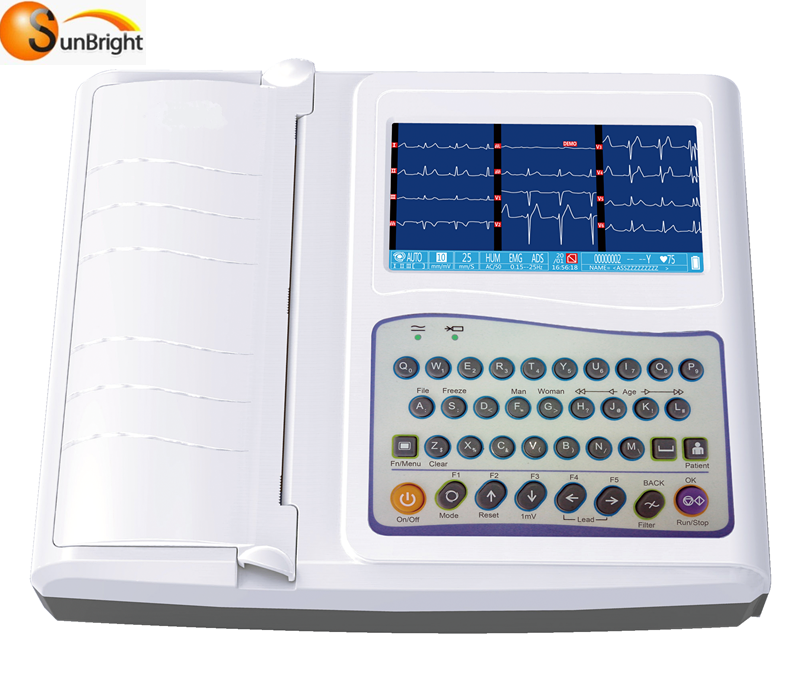

SUN-8121 Digital portable 12 channel 12 leads color large screen ECG machine high quality EKG
| Place of Origin | Shanghai, China |
| Brand Name | Sunbright |
| Model Number | SUN-8121 |
| Power Source | Electric |
| Warranty | 1 Year |
| After-sale Service | Online technical support |
| Material | metal, plastic |
| Shelf Life | 1years |
| Quality Certification | ce |
| Instrument classification | Class II |
| Safety standard | None |
| Type | Digital portable 12 channel ECG |
| Display | 7 inch color LCD |
| rechargeable Li-ion battery | it can work about 2 hours |
| Storage | 250 patients save/reply |
| Recording paper | 215mm roll paper and 210*140mm Z-fold paper |
| Lead | Standard 12 leads |
| Working modes | Manual/Auto/Arrhythmia Analysis modes |
| Power | Adaptor 110-230V |
| Input circuit | floating; protection circuit against defibrillator effect |
| Input impedance | ≥50MΩ |
Supply Ability
Supply Ability: 20000 Unit/Units per Year
Packaging & Delivery
Packaging Details: Sea-worthy packing/Air-worthy packing for
Port:Shenzhen/Shanghai
Features
Portable 12 channel ECG machine
Work modes: Manual/Auto/Arrhythmia analysis modes
10 inch colour LCD with Alphabet keyboard
Alphabetic keyboard for patient information
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply
Real-time ECG waveform, 250 patients save/replay
Built in USB/RS232 interface(ECGNET software Optional)
Technical Specification
* Lead standard 12 leads
* Calibrating voltage: 1mV±2%
* Voltage tolerance: ≥±500mV
* Inter-channel interference:≤0.5mm
* Frequency response: 0.05~160Hz(-3db)
* Patient current leakage: <10μA
* Noise level: <15μVp-p
* Sensitivity valve: ≤20μV
* Paper speed:6.25,12.5, 25,50mm/s(±3%)
* Time constant: ≥3.2s
* Input dynamic range: ±10Vpp
* Filter:
AC flter: 50Hz / 60Hz
EMG filter: 25Hz / 45Hz
Anti-drift filter: 0.15Hz(Adaptive)* Sensitivity: 5,10,20mm/mV
* CMMR: ≥120dB (with AC filter
* Input impedance: ≥50MΩ
* Input circuit current:≤0.05μA* Work mode: MAN,AUTO,ANALYSIS modes
* Lead acquisition12bit/1000Hz(synchronously 12 leads)
* Input circuit: floating; protection circuit against defibrillator effect
EMG filter: 25Hz / 45Hz
Anti-drift filter: 0.15Hz(Adaptive)* Sensitivity: 5,10,20mm/mV
* CMMR: ≥120dB (with AC filter
* Input impedance: ≥50MΩ
* Input circuit current:≤0.05μA* Work mode: MAN,AUTO,ANALYSIS modes
* Lead acquisition12bit/1000Hz(synchronously 12 leads)
* Input circuit: floating; protection circuit against defibrillator effect

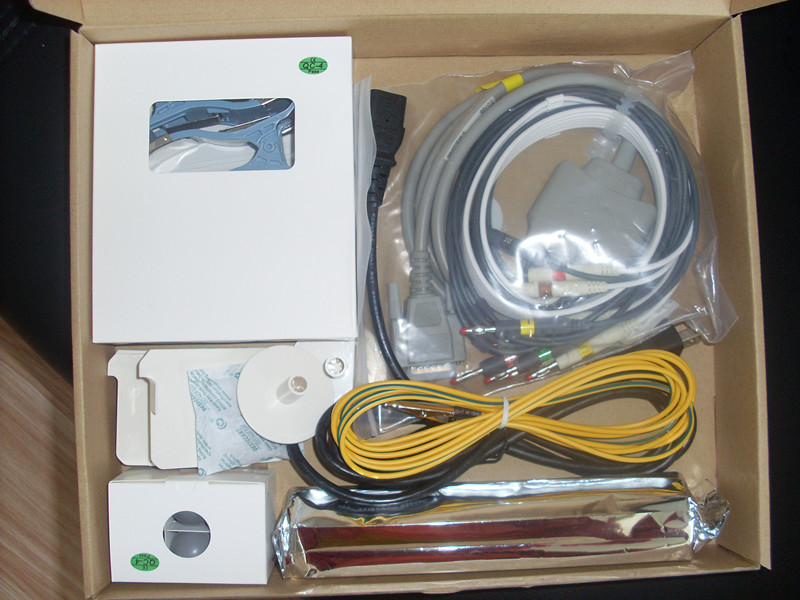

Standard Configuration
Patient cable | 1 set |
Limb electrode | 4 sets |
Chest elelctrodes | 6 sets |
Gounding cable | 1 set |
Paper axis | 1 set |
Thermal paper | 1 set |
Fuse | 2 sets |
3-cord power cord | 1 set |
AC Adaptor | 1 set |
