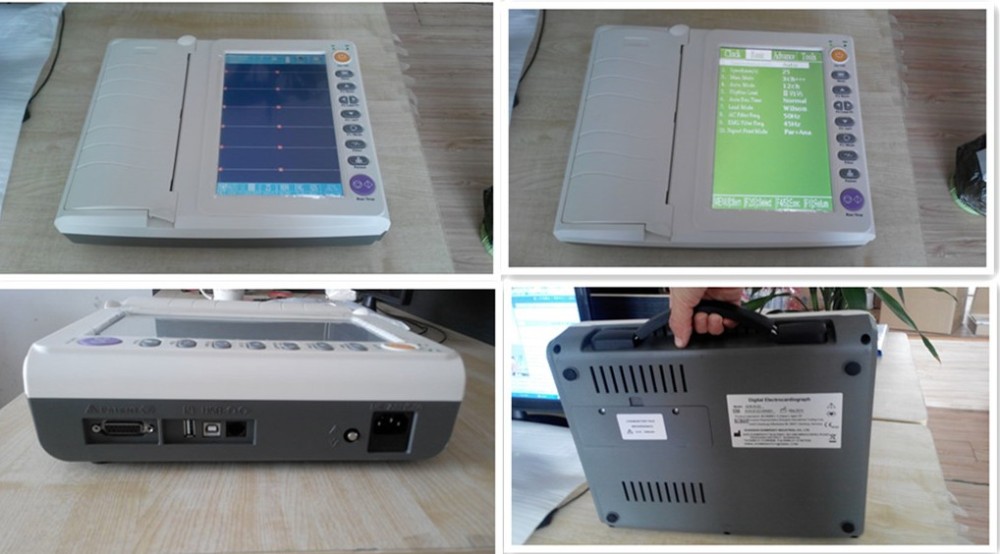

SUN-8122 digital 12 channel ecg machine ambulance use handheld Electrocardiograph

Short Description:

Features

Portable 12 channel ECG machine
Work modes: Manual/Auto/Arrhythmia analysis modes
10 inch colour LCD with Alphabet keyboard
Alphabetic keyboard for patient information
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply
Real-time ECG waveform, 250 patients save/replay
Built in USB/RS232 interface(ECGNET software Optional)

Send email to us

Product Detail

Product Tags

Place of Origin	Shanghai, China
Brand Name	Sunbright
Model Number	SUN-8122
Power Source	Electric
Warranty	1 Year
After-sale Service	Online technical support
Material	metal, plastic
Shelf Life	1years
Quality Certification	ce
Instrument classification	Class II
Safety standard	None
Type	SUN-8122 digital 12 ECG
Display	10 inch color LCD
rechargeable Li-ion battery	it can work about 2 hours
Storage	250 patients save/reply
Channel	12 channels
Limb electrode	4 Sets
Lead	Standard 12 leads
Working modes	MAN, AUTO, ANALYSIS modes
USB/RS232 interface	Optional
Power	Adaptor 110-230V

Supply Ability
Supply Ability: 20000 Unit/Units per Year

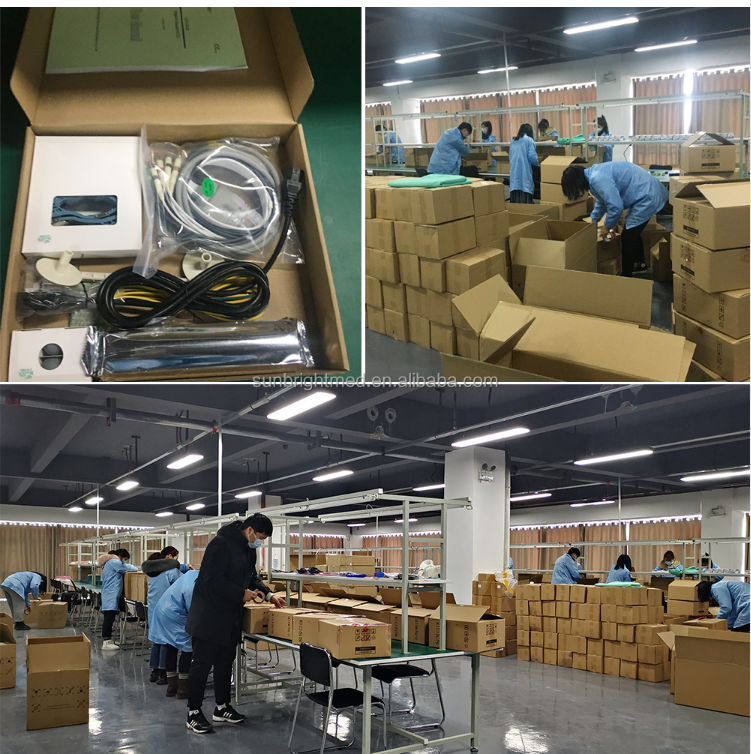

Packaging & Delivery
Packaging Details: Sea-worthy packing/Air-worthy packing
Port:Shenzhen/Shanghai

Features

Portable 12 channel ECG machine

Work modes: Manual/Auto/Arrhythmia analysis modes

10 inch colour LCD with Alphabet keyboard

Alphabetic keyboard for patient information

Built in rechargeable Li-ion battery

Adaptor 110-230V, 50/60Hz AC power supply

Real-time ECG waveform, 250 patients save/replay

Built in USB/RS232 interface(ECGNET software Optional)

Technical Specification

* Lead standard 12 leads
* Calibrating voltage: 1mV±2%
* Voltage tolerance: ≥±500mV
* Inter-channel interference:≤0.5mm
* Frequency response: 0.05~160Hz(-3db)
* Patient current leakage: <10μA
* Noise level: <15μVp-p
* Sensitivity valve: ≤20μV
* Paper speed:6.25,12.5, 25,50mm/s(±3%)
* Time constant: ≥3.2s
* Input dynamic range: ±10Vpp
* Filter:

AC flter: 50Hz / 60Hz
EMG filter: 25Hz / 45Hz
Anti-drift filter: 0.15Hz(Adaptive)* Sensitivity: 5,10,20mm/mV
* CMMR: ≥120dB (with AC filter
* Input impedance: ≥50MΩ
* Input circuit current:≤0.05μA* Work mode: MAN,AUTO,ANALYSIS modes
* Lead acquisition12bit/1000Hz(synchronously 12 leads)
* Input circuit: floating; protection circuit against defibrillator effect

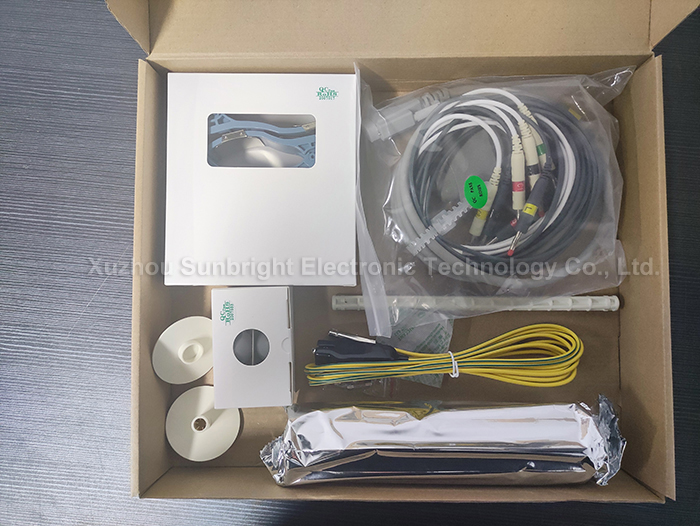

Standard Configuration

Patient cable	1 set
Limb electrode	4 sets
Chest elelctrodes	6 sets
Gounding cable	1 set
Paper axis	1 set
Thermal paper	1 set
Fuse	2 sets
3-cord power cord	1 set
AC Adaptor	1 set
