Syringe pump SUN-500 cheap icu portable safe electric infusion syringe pump

Short Description:

* 4.3 inches large LCD screen, with different colors show.

* With LCD backlight, can use in various lighting conditions.

* Time display, convenience for show and time memory.

* Simultaneous display: Time, Battery, Injection State, Mode, Speed, Injection volume and time, Syringe size, Alarm sound,Block,Accuracy, Body weight, Durg, Dose and Liquid amount.

* Remote control function, can adjust speed, time, volume and drug amonut directly, easier operation, save doctor and nurse’s time.

* Advanced technology, mainly based on Linux system, more safe and steady. All technical are designed by ourselves, further update is available.

* Multi injection modes: V mode, T mode, and body weight mode.

* Alarm: including all abnormal conditions alarm system, with visible, audible and details show on the screen.


Product Detail

Product Tags

Place of Origin Shanghai, China
Brand Name Sunbright
Model Number SUN-500
Warranty 1 Year
After-sale Service Return and Replacement
Instrument classification Class II
Type First-Aid Devices, single use infusion pump cheap
Display 4.3 inches large LCD screen
remote control function it has remote controller
alarm function yes
Multi-injection mode V mode, T mode, and body weight mode
Built-in rechargeable battery it can work about 3 hours
Three levels for Occlusion high/Middle/Low
size 282mm(L) * 210mm(W) * 148mm(H)
Weight 2.2kgs
adjust directly speed/time/volume and drug amount

Supply Ability
Supply Ability: 20000 Unit/Units per Year single use infusion pump cheap

Packaging & Delivery
Packaging Details: air-worthy packing/sea-worthy packing for single use infusion pump cheap
Port: Shanghai

Lead Time

Quantity(Units) 1 - 20 >20
Est. Time(days) 5 To be negotiated
xiangqingye
通用FEEDBACK

Fast Description
* 4.3 inches large LCD screen, with different colors show.
* With LCD backlight, can use in various lighting conditions.
* Time display, convenience for show and time memory
* Simultaneous display: Time, Battery, Injection State, Mode, Speed, Injection volume and time, Syringe size, Alarm sound,Block,Accuracy, Body weight, Durg, Dose and Liquid amount.
* Remote control function, can adjust speed, time, volume and drug amonut directly, easier operation, save doctor and nurse's time
* Advanced technology, mainly based on Linux system, more safe and steady. All technical are designed by ourselves, further update is available.
* Multi injection modes: V mode, T mode, and body weight mode
* Alarm: including all abnormal conditions alarm system, with visible, audible and details show on the screen.

500截图-3

Technical specification:

Rate range
50ml syringe: 0.1~1800ml/h (0.1~999.9ml/h step:0.1ml/h)
30ml syringe: 0.1~900ml/h (1000~1800ml/h step: 0.1ml/h)
20ml syringe: 0.1~600ml/h
10ml syringe: 0.1~300ml/h
5ml syringe: 0.1~150ml/h

Volume limit
0.1~1999.9ml (step: 0.1ml)
Accumulated volume
9999.9ml (step: 0.1ml)
Accuracy Within±2%
KVO Rate: 0.1~5ml/h (adjustable, step:0.1ml/h)

Fuse
F1AL/250V(“F” indicate fast, low breaking, capacity)
2 pcs (installed inside pump)

Power Supply
110~220V, 50Hz, Built-in rechargeable battery, 11.1V, capacity≥2000mAh;
After charging 10 hours, it can work at 5ml/h (GB9706.27 average rate) about 4 hours.

Purge Rate
50ml syringe: 1800ml/h (Bolus rate: 1200ml/h)
30ml syringe: 900ml/h (Bolus rate: 600ml/h)
20ml syringe: 600ml/h (Bolus rate: 400ml/h)
10ml syringe: 300ml/h (Bolus rate: 200ml/h)
5ml syringe: 150ml/h (Bolus rate: 100ml/h)

Alarm
Liquid volume nearlu alarm, Liquid injection
Finish Alarm, Doses injection finished alarm, occlusion alarm, syringe off alarm, syringe non-interlaced correctly alarm, low
battery, low battery alarm.
Power off alarms.
Occlusion
Threee levels for Occlusion: high, Middle, Low

Working surrounding
Temperature: +5~+40°C
Humidiy: 20%~ 90%

Storage surrounding
Temperature: -30°C ~ +50°C
Humidity: ≤ 95%

Storage surrounding
Temperature: -30°C ~ +50°C
Humidity: ≤ 95%

Atmosphere Pressure
860hPa ~ 1060hPa

Safe Class
I type CF devices, Internal Battery, Intermittent
Load continues working

Size: 282mm(L) * 210mm(W) * 148mm(H)
Weight: 2.2kgs

Accessories
Pump, Remote Controller, Power line, User manaul, Guarantee card, Certificate

Details Pictures

500截图

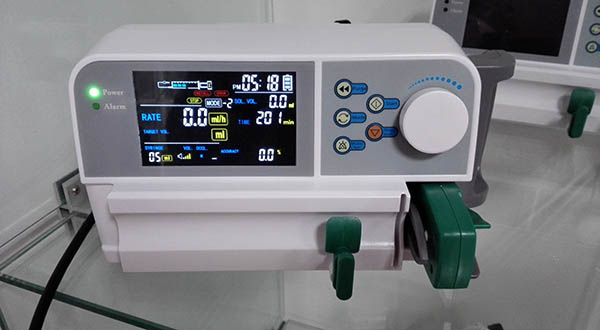

SUN-500129
SAMSUNG CAMERA PICTURES
SUN-500128
